Product Description
Dissolved Oxygen
STA-77x DO Series Sensors
Key Features
- Optical Technology
- Quick Release Tee Options
- Submersible Mount Options (with or without float)
- Convenient Bluetooth CALModule
- Simple 4-20mA Output
- Easy Connection to MegaTron Controllers
- Temperature Compensated Readings
Application
These optical DO sensors can be used in all types of water systems, have various installation options, and provide accurate, temperature compensated DO measurements via 4-20mA output.
Advantage Controls makes integration simple and convenient with our pre-fab options and no requirement for an external power supply and mA output isolator.
MegaTron line of controllers with a 4-20 mA input can power the sensor and provide accurate relay control with standard set point, high/low alarm, timer functions, and proportional control options based on the dissolved oxygen measurement.
Our WebAdvantage web/cloud based communication platform is included with applicable MegaTron controllers and enables cutomized remote monitoring, control, reporting and alarms/alert notifications.

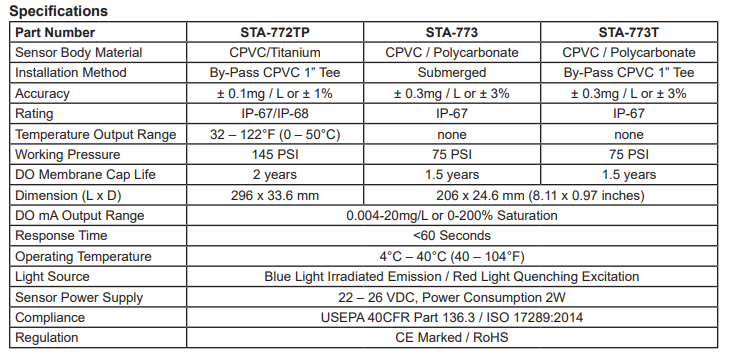

Operational Temp ......32°-113°F (0°-45°C)
Max. Pressure ............75 PSI
Body............................CPVC
Power Supply.............22-26 VDC
Wiring .........................4-wire
Process Connection..Submersible, 3/4” MNPT back, CPVC tee optional
Cable Length..............30 ft.
STA-773 ......................0-20 mg/L or 0-200%
