MegaTron XSi Web Monitor
Cloud-based monitoring, control and reporting of digital I/O and analog signals with WebAdvantage.
DATASHEET
Do you need a cellular router? No problem! Pick your router HERE.
APPLICATION
MegaTron XSi monitors combine industry leading user-friendliness for general purpose I/O and analog signal monitoring with the WebAdvantage cloud based remote control, monitoring and reporting service.
Units can be configured to monitor and control a wide range of digital and analog inputs. Advanced customization and relay logic allow units to meet your specific needs.
MegaTron XSi units are equipped with WebAdvantage for web-based access of settings, readings, email alarming and unique custom reporting.
Key Features
- Customizable LCD Display
- On Board History Graphs
- Simple ATM Style Menu
- Wi-Fi, Ethernet or Cellular
- BACnet or Modbus
- 5 or 10 Digital Inputs
- 5 Assignable Relay Outputs
- 4 Totalizing Flow Inputs
- Up to 8 mA Inputs
- Up to 4 mA Outputs
- Customizable Notepad
- USB History Access
Specifications
Electrical Input: 95-240 VAC, 50/60 Hz (unless option A22 is selected)
Relay Outputs: Equal to input voltage (95-240 VAC) when configured as a powered relay and fused at 2.5A per relay. If configured as a dry contact the pass through current is limited to 2.5A at 28 VDC.
Display: 240 X 128 Graphic LCD Digital Inputs: From open collector/open drain output or a dry contact. Inputs have 10K Ω pullup to 3.3 VDC.
Flow Totalizing Inputs: From open collector/open drain output or dry contact. Inputs use 10K Ω pullup to 5 VDC with a max input rate of 2.5 KHz.
mA Inputs: Optical isolation, 250 Ω / 5 VDC @ 20 mA. Loop voltage to not exceed 30 VDC.
mA Outputs: With non-isolated 12 VDC power from unit max load = 400 Ω. With isolated external 24 VDC power supply, max load = 800 Ω.

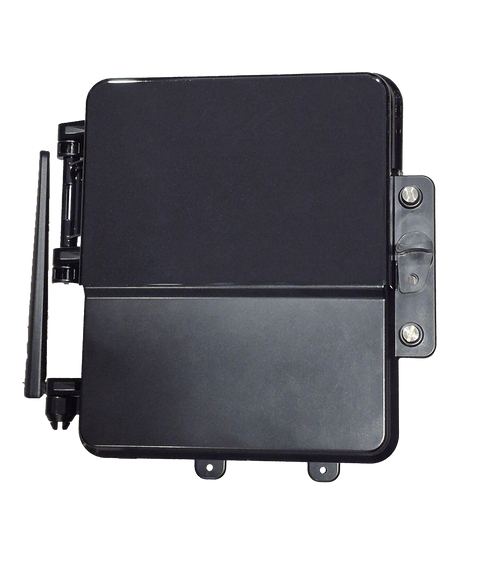

Enclosure: Heavy duty NEMA 4X style high impact ABS with padlockable gasketed Lexan cover.
Environment Ambient temperature: 0o to 125o F (-17 to 52o C) Relative humidity: 0 to 100%
NOTES:
1. Base XSi units have 5 digital inputs, 5 powered relays with WebAdvantage comm card.
2. Communications card can be connected to internet and WebAdvantage via CAT5 or Wi-fi with DHCP or static IP.
3. External cellular routers and data plans are available.
4. All units include 10 customizable notepad fields for manual reading test entry. These entries can generate alarms and are stored historically for graphing and reporting.
5. Prewired units are supplied with an 8’ (248.84 cm) power cord and 8” (20.32 cm) output receptacles
