Product Description

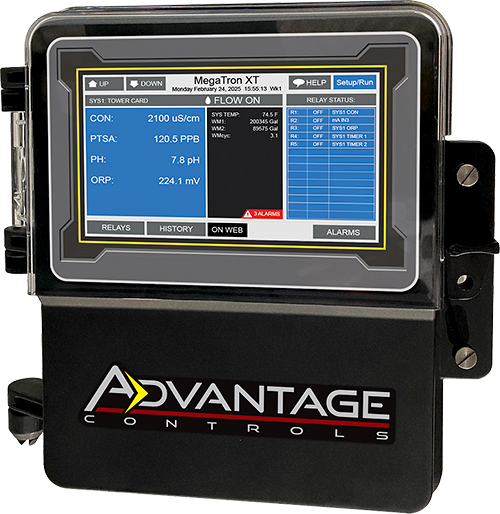

WEBX Web Monitor

DATASHEET | MANUAL

The WEBX monitor saves time and expense by providing real-time readings status and alarms for a wide range of industrial and municipal applications.

Stand-Alone Cloud-Based Alarming, Monitoring, and Reporting of any analog or digital signal via WebAdvantage.

MegaTron WEBX monitors provide local control with web-based alarming and reporting for industrial or municipal applications. WEBX units can recieve customizable 4-20mA and dry contact signals to meet application need.

Control relays can activate pumps, valves, alarm systems and more based on user defined settings.

WebAdvantage provides free web-based access of settings, conditions, e-mail alarming to multiple users and unique custom reporting. Optional built-in cellular service for easy start-up and web connectivity.

Specifications

Electrical Input: 95-240 VAC, 50/60 Hz (unless option A22 is selected)

Relay Outputs: Equal to input voltage (95-240 VAC) when configured as a powered relay and fused at 2.5A per relay. If configured as a dry contact the pass through current is limited to 2.5A at 28 VDC.

Display: 240 X 128 Graphic LCD Digital Inputs: From open collector/open drain output or a dry contact. Inputs have 10K Ω pullup to 3.3 VDC.

Flow Totalizing Inputs: From open collector/open drain output or dry contact. Inputs use 10K Ω pullup to 5 VDC with a max input rate of 2.5 KHz.

mA Inputs: Optical isolation, 250 Ω / 5 VDC @ 20 mA. Loop voltage to not exceed 30 VDC.

mA Outputs: With non-isolated 12 VDC power from unit max load = 400 Ω. With isolated external 24 VDC power supply, max load = 800 Ω.

Enclosure: Heavy duty NEMA 4X style high impact ABS with padlockable gasketed Lexan cover.

Environment Ambient temperature: 0o to 125o F (-17 to 52o C) Relative humidity: 0 to 100%

Features:

• Built-In Cellular Option
• Remote Alarms, Alerts and Status
• Customizable Info/Naming
• 5 or 10 Digital Inputs
• BACnet and Modbus Options
• WebAdvantage Reporting
• Optional Totalizing Flow Inputs
• Up to 16 Analog 4-20 mA Inputs
• Up to 8 Proportional 4-20 mA Outputs
